Patented overheating protection system using core technology (max. 85°C, even without power consumption). With polished mirror collector, which facilitates 360º sunlight capture.
* With higher performance compared to conventional equipment.
* Better efficiency and peace of mind:
Summer: prevention of overheating
Winter: higher sunlight absorption
* The tank is completely made of stainless steel.
* Warranty: 3 years. Useful life: 15 – 20 years.
* Conforms to UNE-EN12976: Solar thermal systems and their components. With MITECO homologation certificate.
HEAT PIPE technology – keeps on working, even if a tube is damaged
Hail resistant UP TO 25 Ø MM
Wind resistant UP TO 25 M/S
Freeze resistant UP TO -35 ºc
Heat preservation UP TO 72 HOURS

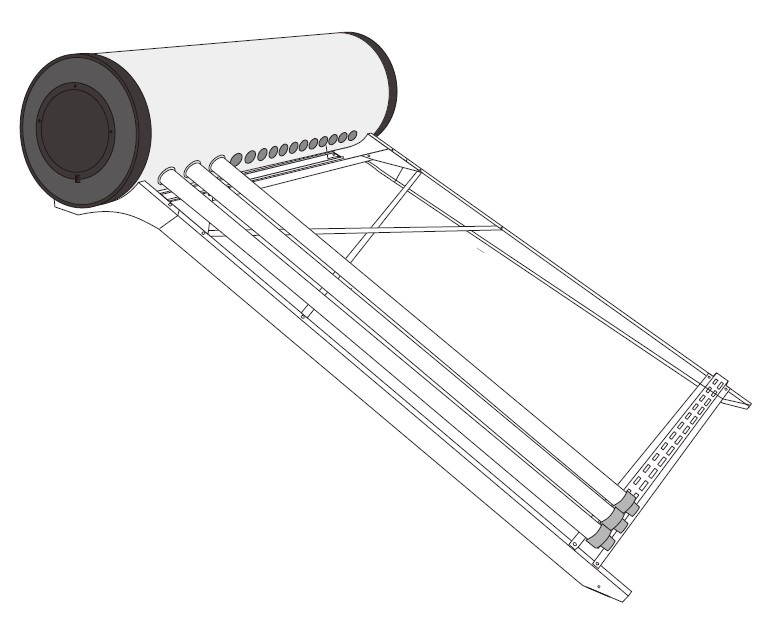

Operating principle: direct working under high pressure. Superconducted heat pipes (no water inside), the solar system can operate normally when any pipe breaks. The vacuum tubes inserted in the tank will transmit the heat to the accumulator, therefore the whole water temperature will gradually increase.
Two installation modes:
Directamente sobre cubiertas inclinadas con pendiente.
Con estructura auxiliar para cubiertas planas.
Weight
N/A
Dimensions
N/A
Technical Specifications
– 316L stainless steel pressurized inner tank
– Safety valve P/T: 6 bar/99º.
– Working pressure: 6 bar
– Daily hot water temperature: 45ºC – 90ºC
– Initial overheating limit: 85ºC – 95ºC (even without water consumption)
– Maximum overheating limit: 95ºC – 105ºC
– Tank material: PVDF
– Heat preservation: 72 hours
– Insulation: polyurethane foam
– Frame material: thick galvanized steel
Structural measurements:
Length (B): 1987 mm
Height (D): 1200 mm
– Emission ratio: ≤0.08
– Transition temperature: 25ºC
– Stagnation temperature of the empty tube: 230ºC
– Glass material: borosilicate glass 3.3
– Heat pipe: TU1
– Lifetime: 15 years
Dimensions of tubes: ∅58 x 1800 mm
Distance between tubes: 110 mm
No. of vacuum tubes
Net tank quantity (L)
Capacity (Liters/day/60ºC)
Users
Effective collector area (m2)
Structural dimensions – Width (W) (mm)
Tank weight (kg)
Pipe weight (kg)
Total weight (kg)
8
97 L
100 L
1 – 2 persons
1.42
1080
59
22
81
10
115 L
120 L
1 – 3 persons
1.80
1300
66
25
91
12
144 L
150 L
2 – 3 persons
2.18
1520
73
28
101
15
180 L
200 L
3 – 4 persons
2.75
1850
89
37
126
20
239 L
300 L
4 – 6 persons
3.70
2430
115
50
165
Latitude
Demand 110 l/day
Demand 170 l/day
Demand 250 l/day
Qd (MJ)
Ql (MJ)
fsol (%)
Qd (MJ)
Ql (MJ)
fsol (%)
Qd (MJ)
Ql (MJ)
fsol (%)
46,8º
6654
5330
80
10281
7253
70,3
15137
8546
56,4
38,0º
4573
4163
91,3
7064
5992
84,6
10407
7726
74,3
*System performance indicators on an annual basis for a demand volume at 45ºC. Orientation: South. Angle of inclination: 45º. Ambient temperature: 15ºC.
Qd: heat energy demand
Ql: heat supplied by the system
fsol: solar fraction = Ql/Qd
Considerations
It includes all the elements for the correct assembly. Quick assembly.
Connection at the rear of the tank, safer for sloped roof installation thanks to the special heating element box.
It is recommended to clean the surface of the tubes 1 or 2 times a year to improve efficiency.
Accessories included:
Optional accessories:
Download Installation Manual
To download the product installation manual in .pdf click here.
